فروش سرور دست دوم HP ProLiant DL320e Generation 8

ارسال توسط author-avatar
روشن تیر 21, 1395
0 دیدگاه

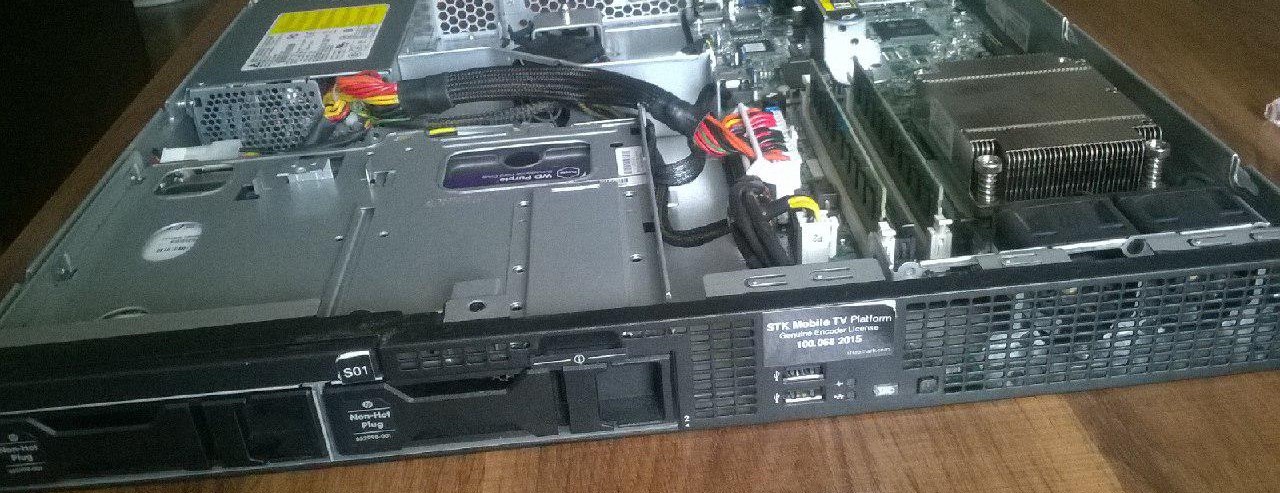

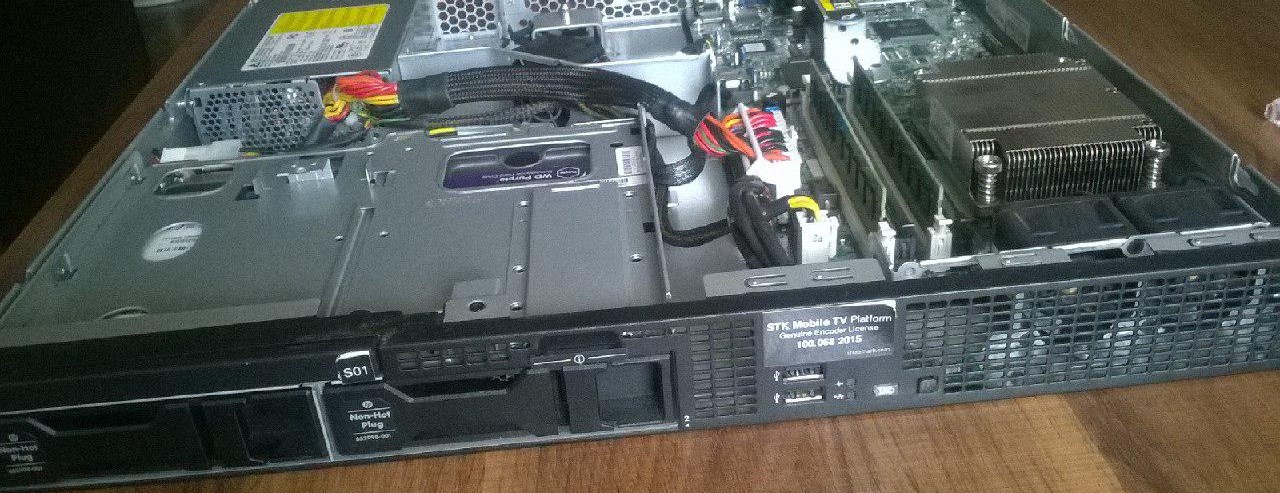

تعداد ۵ دستگاه سرور HP ProLiant DL320e Generation 8 کارکرده و دست دوم ولی با ظاهر بسیار تمیز به همراه دو عدد هارد دو ترابایت و دو عدد رم ۴ گیگابایتی به همراه ریل با قیمت بسیار نازل به فروش می رسد . لازم به ذکر است ارزش خرید این کالا با توجه با کارکرد ، قیمت و همچنین مشخصات فنی بسیار بالا می باشد .

✳️✅ DL320e G8
▶️ ۱۲۲۰ V3

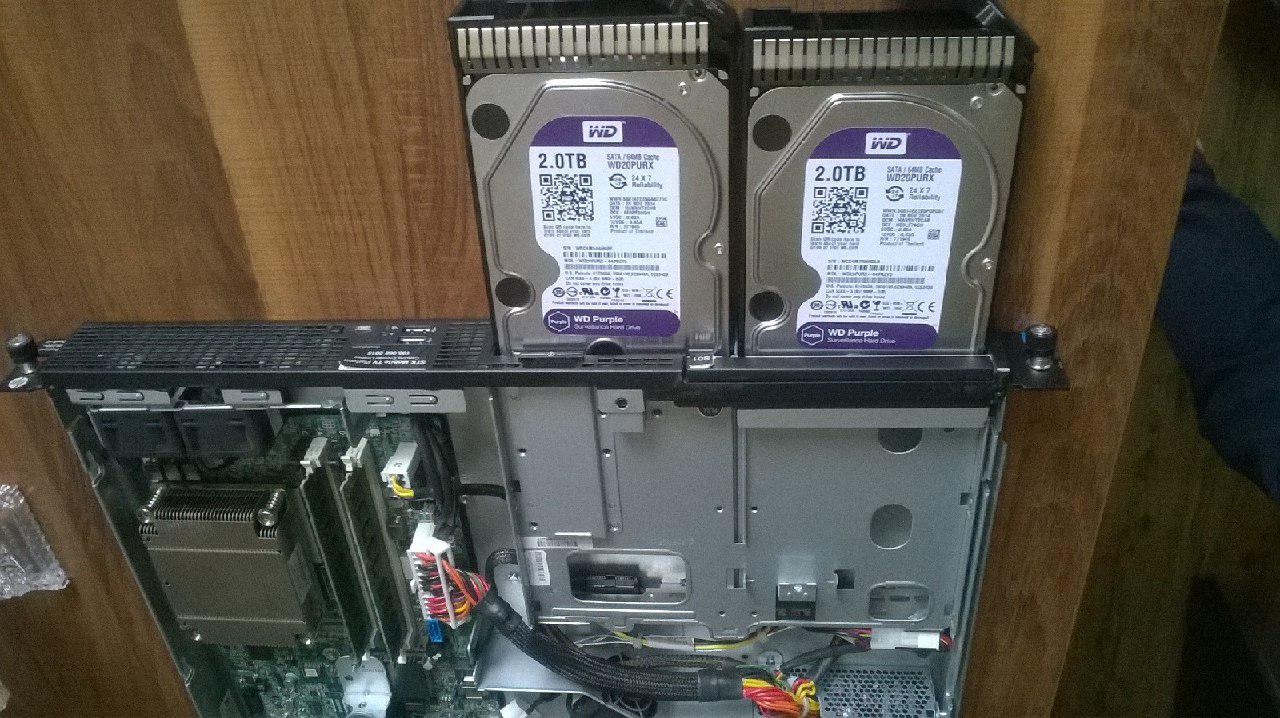

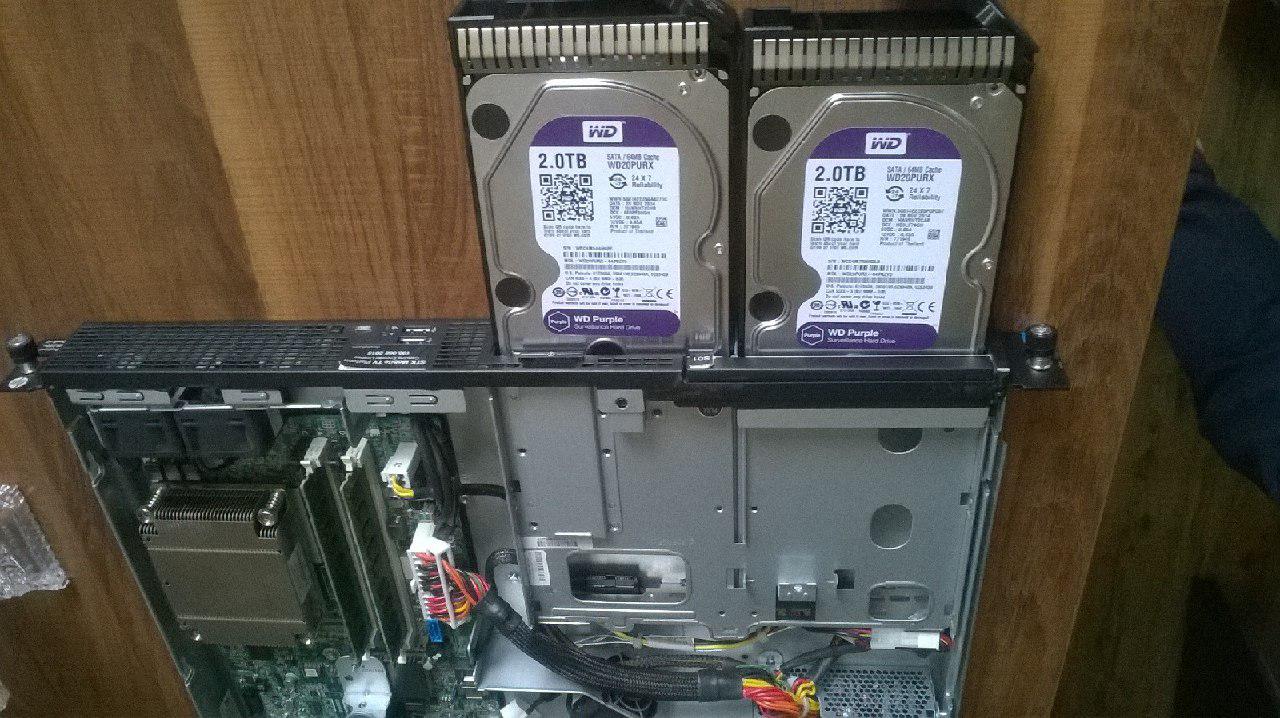

▶️ ۲*hdd 2TB
▶️ ۲*۴GB
✅ برای اطلاعات بیشتر پیام بفرستید : ?? https://telegram.me/ServerusedAdmin
✅ کانال ما : ?? https://telegram.me/serverused





Standard Features

NOTE: For the Standard Features shipped in the “Factory Integrated Models”, please see the “Configuration Information – Factory Integrated Models” section.
Processor
One of the following depending on Model		Entry Processors
Intel® Pentium® G2120 (3.1GHz/2-core/3MB/55W) Processor
NOTE: Intel® Pentium® G2120 Processor supports up to 1600MHz DDR3 memory speeds.
Intel® Pentium® G2100T (2.6GHz/2-core/3MB/35W) Processor
NOTE: Intel® Pentium® G2100T Processor supports up to 1600MHz DDR3 memory speeds.
Base Processors
NOTE: All support up to1600MHz DDR3 memory speeds.
Intel® Core™ i3-3220T (2.8GHz/2-core/3MB/35W, HT) Processor
Intel® Core™ i3-3240 (3.4GHz/2-core/3MB/55W, HT) Processor
Performance Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.
Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W, HT)
Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W)
Intel® Xeon® E3-1230v2 (3.3GHz/4-core/8MB/69W, HT)
Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W, HT)
Intel® Xeon® E3-1270v2 (3.5GHz/4-core/8MB/69W, HT)
Intel® Xeon® E3-1290v2 (3.7GHz/4-core/8MB/87W, HT)
NOTE: HT indicates that the processor model supports Intel® /Hyper-Threading Technology (Depends on the processor).
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs and CPU installed (options for 1600, 1333, 1066MHz).
Cache Memory
One of the following depending on Model		۸MB (1x8MB) Level 3
NOTE: For Quad-core processors.
۳MB (1x3MB) Level 3
NOTE: For Dual-core processors.
ChipsetIntel® C204 Series Chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
UpgradeabilityUp to 4 DIMM slots available for higher Memory capacity
Up to 8 bay SFF Hot plug Drive Cage; Or 4 bay LFF Hot plug or Non hot plug Drive Cages
۱ PCIe 2.0 expansion slot
۱ PCIe 3.0 I/O slot for additional communications and storage expansion (depends on processor)
Redundant Power Supply
Optical Drive Bay
On System Management ProcessorHP iLO (Firmware: HP iLO 4)
NOTE: For more information, visit: http://www.hp.com/go/ilo.
Memory ProtectionECC
Memory
One of the following depending on Model		TypeHP SmartMemory
Unbuffered (UDIMM)
DIMM Slots Available۴ DIMMs (2 Channels/ 2 DIMMs per channel)
Maximum Capacity (UDIMM)۳۲GB (4 x 8GB@1600MHz)
NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant DL320e Gen8 Server.
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
Network ControllerHP Ethernet 1Gb 2-port 330i Adapter
NOTE: The HP ProLiant DL320e Gen8 server has an embedded dual-port network adapter . The server can be further upgraded with various networking products
Expansion SlotsExpansion
Slots #		TechnologyBus
Width *		Connector WidthForm FactorNotes
۱PCIe 2.0x4x8Low profile slot
۲PCIe 3.0x16x16Half-length, full-height slot
*Indicates the number of physical electrical lanes running to the connector.
NOTE: PCIe 3.0 support with Intel Xeon E3-1200v2 family only.
HP Server ROMHP ROM (Read Only Memory) is now digitally signed using HP’s Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HP’s ProLiant ROM is used to configure the following:

  • Processor and chipset status registers
  • System memory, memory map, and memory initialization
  • System hardware configuration (Integrated PCI devices and optional PCIe cards).
  • Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to HP’s RBSU (ROM based setup utility) user guide:www.hp.com/support/rbsu.

Storage Controller
One of the following depending on Model		Entry Models
(Non hot plug)		HP Dynamic Smart Array B120i Controller
NOTE: Supports 3.0Gb/s SATA.
NOTE: Supports RAID 0/1/10 only. It does not have FBWC support so cannot support advanced RAID (5 onwards). For FBWC, a standup Smart Array Controller card must be configured.
Base Models
(Hot plug)		HP Dynamic Smart Array B120i Controller
NOTE: Supports 3.0Gb/s SATA.
NOTE: Supports RAID 0/1/10 only. It does not have FBWC support so cannot support advanced RAID (5 onwards). For FBWC, a standup Smart Array Controller card must be configured.
Performance Models
(Hot plug)		HP Smart Array P222/512MB FBWC controller
NOTE: P222 can support RAID 0/1/10/5/5+0/6/6+0.
NOTE: HP Smart Array Advanced Pack (SAAP 2.0) is no longer required to enable RAID 6 & 60 (Advanced Data Guarding). However, controller must be in firmware version 4.68 (or later).
NOTE: The DL320e Gen8 can support other advanced controllers as well, depending on model and configuration
NOTE: For set up instructions for HP Smart Array B120i SATA Controller please refer to the HP ProLiant DL300 series server user guide.
NOTE: For general information about HP Smart Array B120i SATA RAID Controller, please visit:
http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers
/dynamicsmartarray/index.html
Internal Storage DevicesDiskette DriveNone
Optical DriveOptional
DVD-ROM, DVD-RW
Hard Drives
One of the following depending on Model 		None ship standard (Base Models and Performance Models)
۱x NHP 500GB SATA 3.5″ drive (Entry Models)
Hard Drive Bays۸ SFF drive bays or 4 LFF Non hot plug/Hot plug
NOTE: HP ProLiant DL320e Series servers offer both SFF, and LFF versions in CTO. The Optical Drive bay is available with both models.
NOTE: LFF versions are not an upgradeable option from SFF models, or vice versa, also between Non Hot Plug LFF and Hot Plug LFF.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.
Maximum Internal StorageHot Plug SFF SAS۹٫۶TB۸ x 1.2TB
Hot Plug SFF SATA۸٫۰TB۸ x 1TB
Hot Plug LFF SAS۱۶٫۰TB۴ x 4TB
Hot Plug LFF SATA۱۶٫۰TB۴ x 4TB
Hot Plug SFF SAS SSD۶٫۴TB۸ x 800GB
Hot Plug SFF SATA SSD۶٫۴TB۸ x 800GB
Hot Plug LFF SATA SSD۳٫۲TB۴ x 800GB
Non-Hot Plug LFF SATA۱۲٫۰ TB۴ x 3TB
InterfacesSerial۱
Video۱ Rear standard video
HP iLO Remote Management Network Port۱Gb Dedicated
SD slot۱ Internal
NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
USB 2.0 Ports۷ total: 4 rear, 2 front, 1 internal (Optional)
Industry Standard ComplianceACPI 2.0b Compliant
PCIe 3.0
PXE Support
WOL Support
USB 2.0 Compliant
Server Power CordsAll Pre-configured Models servers ship with a high voltage server to PDU power cord.
NOTE: HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cords (227099-001) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU’s in data center racks so they now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001). If a user wishes to power a ProLiant DL server using a110V receptacle (NEMA-15), the 12-foot NEMA 5-15 to C13 power cord must be ordered separately. See Power Cords section for Worldwide Power Cord options.
Power SpecificationsTo review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor.

NOTE: Power Specification and Technical Content for supported power supplies can be found at:http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

Common Slot Power Supply

NOTE: The default power supply for DL320e Gen8 server is a 350W Non Hot Plug, Non Redundant (ATX) power supply with 85% efficiency.
NOTE: To choose a Redundant Common Slot Power Supply option for the DL320e Gen8 server, a Factory Integrated Model must be chosen, beginning with a CTO server. Also, an HP DL320e Gen8 RPS Enablement FIO Kit (675451-B21) is required.

HP’s Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. The 460W HP CS power supply option provides an efficiency rating of up to 94%. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

NOTE: Mixing of power supplies (for instance Common Slot Platinum Plus power supplies and Common Slot Gold power supplies) in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

HP CS Platinum Plus power supplies are required when enabling HP’s Intelligent Power Discovery (IPD) solution. IPD is the first technology to create an automated, energy-aware network between IT systems and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime costs across data centers. For more information on HP’s IPD solution, go to www.hp.com/go/ipd.

It is highly recommended that you use the HP Power Advisor in defining the “Right-Size” power supply for your needs. HP Power Advisor can be accessed at: www.hp.com/go/hppoweradvisor.

NOTE: The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on 80Plus.org.

Redundant Power: Optional (1+1 or n+n redundant) power supplies can be purchased through power supply option kits (see Power Supplies for part numbers).

NOTE: Power Specification and Technical Content for supported power supplies can be found at:http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

System Fans۴ fan modules ship standard, non-redundant
Operating Systems and Virtualization Software Support for ProLiant ServersMicrosoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
NOTE: For more information on HP’s Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page:http://www.hp.com/support/DL320eGen8.
GraphicsIntegrated Matrox G200 video standard

  • ۱۲۸۰ x 1024 (32 bpp)
  • ۱۹۲۰ x 1200 (16 bpp)

HP iLO 4 On System Management Memory

  • ۱۶ MB Flash
  • ۲۵۶ MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor
One of the following depending on Model		۱U Rack form factor
۸ SFF Drive Bay Version:
۱٫۷″ (۴٫۳۲cm) Height x 17.11″ (43.46cm) Width x 27.5″ (69.90cm) Length
۴ LFF Drive Bay Version:
۱٫۷″ (۴٫۳۲cm) Height x 17.11″ (43.46cm) Width x 29.5″ (75.00cm) Length
On System ManagementHP iLO Management EngineHP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:

  • HP iLO: The HP iLO (Integrated Lights-Out) management processor is the core foundation for the HP iLO Management Engine
  • HP Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.
  • HP Active Health System: Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.
  • HP Intelligent Provisioning: Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed.
    • To start Intelligent Provisioning:
      • Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST).
      • Please go to the Intelligent Provisioning website atwww.hp.com/go/intelligentprovisioning for additional information and to view usage videos.
      • Use the Service Pack for ProLiant (SPP) atwww.hp.com/go/spp to get firmware and software updates.
  • HP iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: www.hp.com/go/ilo/mobileapp

NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper

HP Insight ManagementHP Service Pack for ProLiantHP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HP SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HP SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HP SUM provides the tools to optimize stability and consistency throughout the company. While HP SUM and the SPP recommend the combinations of firmware and system software that HP has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.

NOTE: The Service Pack for ProLiant (which includes HP SUM) can be downloaded from www.hp.com/go/spp/download. More information can be found:http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp andhttp://www.hp.com/go/hpsum

SecurityPower-on password
Administrator’s password
WarrantyThis product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Optional Features

HP Insight management softwareHP Insight ControlHP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HP Insight Control also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see:http://www.hp.com/services/insight.

HP iLO EssentialsHP iLO Essentials license ideal for small and medium business customers. The specially created HP iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HP iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials
HP iLO AdvancedHP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance
HP Matrix Operating EnvironmentThe HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HP CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).

NOTE: For more information, visit: http://www.hp.com/go/matrixoe

High Performance ClustersHP Cluster PlatformsHP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering.http://www.hp.com/go/clusters.
HP HPC InterconnectsHigh Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Insight Cluster Management UtilityHP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu
Storage SoftwareWhether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:

  • Data Protection and Recovery Software
    Whether you’re a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
  • Data Archive and Migration Software
    HP’s storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
  • Storage Resource Management Software (SRM)
    HP’s storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
  • Data Replication Software
    HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
  • Storage Device Management Software
    Maximize your investment in HP storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
  • HP StoreVirtual VSA
    With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE: For more information available Storage Software including QuickSpecs, please see:www.hp.com/go/storage/software.

HP Insight OnlineHP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online’s easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. www.hp.com/go/insightonline
HP Proactive Insight experiencePrevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience
Factory Express Portfolio for Servers and StorageHP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Simple ConfiguratorSCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require “custom” rack configuration or configuration for products not available in SCE, please contact HP’s Customer Business Center or an Authorized Partner for assistance.http://www.hp.com/products/configurator
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Service and Support

Service and SupportHP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That’s why it makes sense to team up with the people who know HP infrastructure hardware and software best – the experienced professionals at HP Services.What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. Foundation Care services deliver scalable support-packages for HP industry-standard servers and software. You can choose the type and level of service that is most suitable for their business needs. New to this portfolio is HP Collaborative Support. If you are running business critical environments, HP offers Proactive Care or Critical Advantage. These services help deliver high levels of application availability through proactive service management and advanced technical response

You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs.

HP Technology Services meets business challenges with services offered in three support recommendations –Optimized Care, Standard Care, and Basic Care – available for each product group. Such support solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support recommendations for servers, storage, networking and software designed to meet your specific needs.

All three service recommendations include support services from the broader portfolio of Foundation Care and Proactive Care services.

Optimized CareOptimized Care: Supports maintaining servers at optimum performance availability

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional mannerhttp://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

HP Installation and Startup for Insight Control Software / HP SIM
Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servershttp://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

۳-Year HP 24×7 4 hour Response, Proactive Care
Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your call and end to end until resolved, delivering a single point of contact for you. Helping you to resolve your hardware and software issues and minimizing downtime in your business critical environment.

Additional Services: Factory Express, Education Services, Proactive Select – 30 Credit Package

Standard CareStandard Care: Service recommendation that maintains high level of server availability

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional mannerhttp://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

HP Installation and Startup for Insight Control Software / HP SIM
Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servershttp://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

۳-Year HP 24×7 4 hour Response, Collaborative Support
Provides problem resolution support across the stack of HW, firmware, and HP and 3rd party SW. In case the issue is with 3rd party SW, HP does known issue resolution. If HP cannot solve the issue, it will contact the third-party vendor and create a problem incident on your behalf.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8232ENW.pdf

Additional Services: Software support service with 24X7 availability with a 2 hour response, Training courses on Microsoft, Linux (Red Hat and SUSE), VMware, and HP Insight Software, 10 Proactive Select Credit package, Factory Express
http://www8.hp.com/us/en/business-services/it-services.html?compURI=1078865

Basic CareBasic Care: delivers minimum recommended support service level

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional mannerhttp://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

۳-Year HP 24×7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an HP authorized technical engineer will be on site 24X7 begin hardware maintenance service within 4 hours of the service request being logged
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

۳-Year , HP 24×7 Software Support for Insight Control
Provides remote 3-year software support service that delivers comprehensive software services, including access to HP technical resources and software updates http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services: Factory Express, Education Services, Proactive Select – 10 Credits

Insight Remote SupportProvides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn morehttp://www.hp.com/go/insightremotesupport
HP Support CenterPersonalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn morehttp://www.hp.com/go/hpsc

HP’s Support Center Mobile App * allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

*HP’ Support Center Mobile App is subject to local availability

Warranty / Service CoverageFor ProLiant servers and storage systems, the services cover HP-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22″ and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer’s operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more informationTo learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Pre-configured Models

NOTE: For the Standard Features shipped in the “Factory Integrated Models”, please see the “Configuration Information – Factory Integrated Models” section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see “Configuration Information – Factory Integrated Models” section of this QuickSpecs.
NOTE: Maximum speed supported depends on the CPU installed. Entry model will support maximum speed of 1600 MHz.
Please see Memory Population Table or the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Entry Models
HP ProLiant DL320e Gen8 G2120 1P 2GB-U Non-hot Plug SATA 4 LFF 350W PS Server
۶۷۵۴۲۰-xx1		Processor(s)(۱) Intel® Pentium® G2120 (3.1GHz/2-core/3MB/55W) Processor
Cache Memory۳MB (1x3MB) Level3
Memory۲GB (1 x 2GB) Unbuffered DIMMs PC3-12800E (1600MHz)
Network ControllerHP Ethernet 1Gb 2-port 330i Adapter
Storage ControllerHP Dynamic Smart Array B120i Controller
Hard Drive(۱) ۵۰۰GB 3.5″ Non-hot plug SATA
Internal Storage۴ bay LFF Non hot plug Drive Cage; includes 3 LFF hard drive blanks
Optical Drive BayNone ships standard
PCI-Express Slots۱ PCIe3 x16 and 1 PCIe2 x8
Power Supply۳۵۰ Watts Non-Hot Plug, Non redundant Power Supply
NOTE: The 350 Watts Non-Hot Plug Non redundant Power Supply is rated at 85% efficiency.
Fans۴ fan modules ship standard, non-redundant
ManagementHP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control
Form Factor۱U, HP Friction Rail Kit
WarrantyServer Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
Base Models
HP ProLiant DL320e Gen8 E3-1220v2 1P 4GB-U Hot Plug 4 LFF 350W PS Server
۶۷۵۴۲۱-xx1		Processor(s)(۱) Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W, HT) Processor
Cache Memory۸MB (1x8MB) Level3
Memory۴GB (1 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)
Network ControllerHP Ethernet 1Gb 2-port 330i Adapter
Storage ControllerHP Dynamic Smart Array B120i Controller
Hard DriveNone ship standard
NOTE: Only SATA 3 Gbit/s data transmission guaranteed without HP Smart Array Card.
Internal Storage۴ bay LFF Hot Plug Drive Cage; includes 3 LFF hard drive blanks
Optical Drive BayNone ships standard
PCI-Express Slots۱ PCIe3 x16 and 1 PCIe2 x8
Power Supply۳۵۰ Watts Non-Hot Plug, Non redundant Power Supply
NOTE: The 350 Watts Non-Hot Plug Non redundant Power Supply is rated at 85% efficiency.
Fans۴ fan modules ship standard, non-redundant
ManagementHP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control
Form Factor۱U, HP Friction Rail Kit
WarrantyServer Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
Performance Models
HP ProLiant DL320e Gen8 E3-1240v2 1P 8GB-U P222 Hot Plug 4 LFF 350W PS Server
۶۷۵۴۲۲ -xx1		Processor(s)(۱) Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W, HT) Processor
Cache Memory۸MB (1x8MB) Level3
Memory۸GB (2 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)
Network ControllerHP Ethernet 1Gb 2-port 330i Adapter
Storage ControllerHP Smart Array P222/512MB FBWC Controller
Hard DriveNone ship standard
Internal Storage۴ bay LFF Hot Plug Drive Cage; includes 3 LFF hard drive blanks
Optical Drive BayNone ships standard
PCI-Express Slots۱ PCIe2 x8 available
Power Supply۳۵۰ Watts Non-Hot Plug, Non redundant Power Supply
NOTE: The 350 Watts Non-Hot Plug Non redundant Power Supply is rated at 85% efficiency.
Fans۴ fan modules ship standard, non-redundant
ManagementHP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor۱U, HP Friction Rail Kit
WarrantyServer Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response
Country Code Keyxx = 00U.S.
xx = 20Brazil
xx = 29Japan
xx = 37APD
xx = 42Europe
xx = AAPRC
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Configuration Information – Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Factory Integrated Models must start with a CTO Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
Step 1: Base Configuration (choose one of the following configurable models)
HP ModelsHP ProLiant DL320e Gen8 Hot Plug 4 LFF Configure-to-order Server
NOTE: All 6G SATA/SAS Drives listed in HDD section are tested and supported for both 3G and 6G speed. A HP Smart Array Controller is required for 6G HDD.
۶۷۵۵۹۷-B21
Factory Integrated Model ships with:
۱U Chassis with 4 LFF Hot Plug Drive Cage
HP Ethernet 1Gb 2-port 330i Adapter
HP iLO Management Engine (standard)
HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10)
NOTE: For set up instructions for HP Dynamic Smart Array B120i SATA Controller please refer to the HP ProLiant DL300 series server user guide
NOTE: For general information about HP Dynamic Smart Array B120i SATA Controller, please visit: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
smartarrayb120i/index.html
HP ProLiant DL320e Gen8 Hot Plug 8 SFF Configure-to-order Server۶۷۵۵۹۸-B21
Factory Integrated Model ships with:
۱U Chassis with 8 SFF Hot Plug Drive Cage
HP Ethernet 1Gb 2-port 330i Adapter
HP iLO Management Engine (standard)
HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10)
NOTE: For set up instructions for HP Dynamic Smart Array B120i SATA Controller please refer to the HP ProLiant DL300 series server user guide
NOTE: For general information about HP Dynamic Smart Array B120i SATA Controller, please visit: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
smartarrayb120i/index.html
HP ProLiant DL320e Gen8 Non-hot Plug 4 LFF Configure-to-order Server
NOTE: All 6G SATA/SAS Drives listed in HDD section are tested and supported for both 3G and 6G speed. A HP Smart Array Controller is required for 6G HDD.		۶۷۵۵۹۶-B21
Factory Integrated Model ships with:
۱U Chassis with 4 LFF Non hot plug Drive Cage
HP Ethernet 1Gb 2-port 330i Adapter
HP iLO Management Engine (standard)
HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10)
NOTE: For set up instructions for HP Dynamic Smart Array B120i SATA Controller please refer to the HP ProLiant DL300 series server user guide
NOTE: For general information about HP Dynamic Smart Array B120i SATA Controller, please visit: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
smartarrayb120i/index.html
Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP ProcessorsEntry Processors
NOTE: All support up to1600MHz DDR3 memory speeds.
HP DL320e Gen8 Intel® Pentium® G2120 (3.1GHz/2-core/3MB/55W) FIO Processor Kit۷۰۳۲۷۸-L21
HP DL320e Gen8 Intel® Pentium® G2100T (2.6GHz/2-core/3MB/35W) FIO Processor Kit۷۰۳۲۸۰-L21
Base Processors
NOTE: All support up to1600MHz DDR3 memory speeds.
HP DL320e Gen8 Intel® Coreâ„¢ i3-3220T (2.8GHz/2-core/3MB/35W) FIO Processor Kit۷۰۰۷۹۲-L21
HP DL320e Gen8 Intel® Coreâ„¢ i3-3240 (3.4GHz/2-core/3MB/55W) FIO Processor Kit۷۰۰۷۸۶-L21
Performance Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.
HP DL320e Gen8 Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) FIO Processor Kit۶۸۲۷۸۹-L21
HP DL320e Gen8 Intel® Xeon® E3-1220v2 (3.1GHz/4-core/8MB/69W) FIO Processor Kit۶۸۲۷۸۷-L21
HP DL320e Gen8 Intel® Xeon® E3-1230v2 (3.3GHz/4-core/8MB/69W) FIO Processor Kit۶۸۲۷۸۵-L21
HP DL320e Gen8 Intel® Xeon® E3-1240v2 (3.4GHz/4-core/8MB/69W) FIO Processor Kit۶۸۲۷۸۳-L21
HP DL320e Gen8 Intel® Xeon® E3-1270v2 (3.5GHz/4-core/8MB/69W) FIO Processor Kit۶۸۲۷۸۱-L21
HP DL320e Gen8 Intel® Xeon® E3-1290v2 (3.7GHz/4-core/8MB/87W) FIO Processor Kit۶۸۲۷۷۷-L21
HP MemoryNOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with new Active Health features on the DL320e Gen8 Server.
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit۶۶۹۳۲۰-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit
۶۴۷۹۰۵-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
۶۶۹۳۲۲-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit
۶۴۷۹۰۷-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
۶۶۹۳۲۴-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit۶۴۷۹۰۹-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the “Memory” section later in this document and the Online Memory Configuration Tool for details atwww.hp.com/go/ddr3memory-configurator.
NOTE: For additional memory rules and guidelines, see the “Memory” section later in this document.
NOTE: For more information on ProLiant Energy Efficient Features, see:www.hp.com/go/proliant-energy-efficient
NOTE: PC3L is a low voltage memory.
HP Power SuppliesNOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 350W 1U Factory Integrated Power Supply Kit
NOTE: The 350 Watts Power Supply is rated at 85% efficiency. 		۶۷۵۴۵۰-B21
HP Common Slot Platinum Plus Power Supply Kits
NOTE: The following Power Supplies offer 94% efficiency with support for Intelligent Power Discovery.
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit۶۵۶۳۶۲-B21
HP Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer 92% efficiency.
HP 460W Common Slot Gold Hot Plug Power Supply Kit۵۰۳۲۹۶-B21
HP DL320e Gen8 Factory Integrated RPS Enablement Kit
NOTE: When selecting Common Slot power supply options for the DL320e Gen8 server, a HP DL320e Gen8 RPS Enablement FIO Kit (675451-B21) is required for HP common slot redundant power supply configurations.		۶۷۵۴۵۱-B21
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable.
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html
Step 3: Choose Additional Factory Integratable Options
HP USB KitHP Gen8 FIO Internal USB Kit۶۶۲۹۶۱-B21
HP Rail KitsNOTE: Gen8 rail kits have changed significantly from prior generation rail kits. Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen8 server.
NOTE: Rail kits are optional for Gen8 and are no longer included standard with the server. Customers have the option to purchase their server without a rail kit.
CAUTION: HP recommends that at least two people are used for all rack server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
HP 1U FIO Friction Rail Kit
NOTE: Kit contains non-telescoping friction rails which do not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.		۶۶۳۲۰۰-B21
HP Insight SoftwareHP Insight Control including 1yr 24×7 Support ProLiant ML/DL/BL-bundle Single Server FIO LicenseC6N36A
Converged Infrastructure Management SoftwareHP OneView with iLO Advanced – Server hardware required on same purchase order
HP OneView incl 3yr 24×7 Supp FIO Bundle Phys 1 Svr LicE5Y43A
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the “Core Options” and “Additional Options” section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Unique OptionsHP DL320e Gen8 Mini SAS Cable Kit
NOTE: HP DL320e Gen8 mini SAS cable kit would be required for the server to be compatible with 4LFF Hot Plug drives, H222 and P222 controllers.		۶۸۵۰۱۸-B21

HP Memory

NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with SmartMemory features in Gen8 Servers.
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit۶۶۹۳۲۰-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit
۶۴۷۹۰۵-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
۶۶۹۳۲۲-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit
۶۴۷۹۰۷-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
۶۶۹۳۲۴-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit۶۴۷۹۰۹-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: PC3L is a low voltage memory.

HP Optical Drives

HP 9.5mm SATA DVD-ROM JackBlack Optical Drive
۶۵۲۲۳۸-B21
HP 9.5mm SATA DVD-RW JackBlack Optical Drive۶۵۲۲۴۱-B21
HP Hard DrivesNOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۹۷۵۷۴-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۵۸۹-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۵۸۳-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۵۷۲-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۵۶۴-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۶۱۱-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۶۰۵-B21
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۲۷۴۹-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۲۷۴۵-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۶۲۰-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive۶۵۲۶۱۵-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۹۵۵۱۰-B21
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۲۷۶۶-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۲۷۵۷-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۲۷۵۳-B21
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive۵۱۶۸۳۰-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive۵۱۶۸۲۶-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)
۶G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۵۷۱۰-B21
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۵۷۰۸-B21
۶G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۹۳۶۸۷-B21
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۲۸۰۶۱-B21
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۸۰۷۹-B21
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۷۷۵۰-B21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive۶۵۸۰۷۱-B21
۶G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive۶۲۸۰۶۵-B21
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive۶۵۹۳۳۹-B21
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive۶۵۹۳۳۷-B21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive۶۵۹۳۴۱-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html (Worldwide)
۶G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۱۷۹۶۵-B21
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۳۴۳۶۰-B21
۶G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۱۸۱۷۱-B21
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۳۴۳۶۲-B21
۶G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives
۶G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives۷۱۷۹۷۳-B21
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive۷۱۷۹۷۱-B21
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۳۹۸۹۸-B21
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۳۹۸۸۸-B21
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive۷۱۷۹۶۹-B21
۶G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive۷۱۸۱۸۹-B21
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۳۹۹۰۰-B21
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive۷۱۸۱۸۳-B21
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive۷۳۹۸۹۰-B21
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive۷۱۸۱۷۷-B21
۶G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۶۸-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۶۶-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۶۴-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۶۲-B21
۶G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۶۰-B21
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۵۶-B21
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۵۴-B21
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive۶۹۱۸۵۲-B21
۶G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive۶۵۳۰۸۲-B21
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive۶۵۳۰۷۸-B21
۳G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 400GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive۶۵۳۱۲۰-B21
HP 200GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive۶۵۳۱۱۸-B21
HP 100GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive۶۵۳۱۱۲-B21
۳G SATA MLC Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
HP 400GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive۶۵۳۱۲۶-B21
HP 200GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive۶۵۳۱۲۴-B21
HP 100GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive۶۵۳۱۲۲-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html (Worldwide)
Hard Drive Kits
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
NOTE: The part numbers for single HDD blanks below are provided should the customer require replacement HDD blanks for their server.
NOTE: The mixing of standard SAS drives with SAS SSD drives is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.
HP LFF Gen8 Hard Drive Blank Kit۶۶۶۹۸۶-B21
HP SFF Gen8 Hard Drive Blank Kit۶۶۶۹۸۷-B21
HP NetworkingGigabit Ethernet Adapters
HP NC112T PCI Express Gigabit Server Adapter۵۰۳۷۴۶-B21
HP NC365T 4-port Ethernet Server Adapter۵۹۳۷۲۲-B21
HP Ethernet 1Gb 2-port 361T Adapter۶۵۲۴۹۷-B21
HP Ethernet 1Gb 4-port 331T Adapter۶۴۷۵۹۴-B21
HP Ethernet 1Gb 2-port 332T Adapter۶۱۵۷۳۲-B21
۱۰ Gigabit Ethernet Adapters
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
HP NC523SFP 10Gb 2-port Server Adapter۵۹۳۷۱۷-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter۶۱۴۲۰۳-B21
HP Ethernet 10Gb 2-port 530T Adapter۶۵۶۵۹۶-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter۶۶۵۲۴۹-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs.
HP Power SuppliesNOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
HP Common Slot Platinum Plus Power Supply Kits
NOTE: The following Power Supplies offer 94% efficiency with support for Intelligent Power Discovery.
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit۶۵۶۳۶۲-B21
HP Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer 92% efficiency.
HP 460W Common Slot Gold Hot Plug Power Supply Kit۵۰۳۲۹۶-B21
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable.
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Management HardwareHP Dedicated iLO Management Port Kit۶۷۴۸۴۵-B21
HP Insight SoftwareHP Insight Control
HP Insight Control including 1yr 24×7 Technical Support and Updates Single Server LicenseC6N27A
HP Insight Control including 1yr 24×7 Technical Support and Updates Electronic LicenseC6N28ABE
HP Insight Control Server Provisioning Media KitBD883A
HP Insight Management Media KitC6N31A
HP Insight Control including 1yr 24×7 Support ProLiant ML/DL/BL-bundle FIO Electronic LicenseC6N36ABE
HP Insight Control Server Deployment including 1yr 24×7 Support Electronic LicenseT9082AAE
HP Insight Control Server Deployment including 1yr 24×7 Support Single Server License۴۵۲۱۵۱-B21
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the QuickSpecs at:http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Integrated Lights-Out (iLO)
HP Integrated Lights-Out (iLO) Advanced for ProLiant
HP iLO Advanced including 1yr 24×7 Technical Support and Updates Electronic LicenseE6U59ABE
HP iLO Advanced including 3yr 24×7 Tech Support and Updates Electronic LicenseE6U64ABE
HP iLO Advanced including 1yr 24×7 Technical Support and Updates Single Server License۵۱۲۴۸۵-B21
HP iLO Advanced 1 Server License with 3yr 24×7 Tech Support and UpdatesBD505A
HP iLO Essentials
HP Integrated Lights-Out Essentials including 3yr 24×7 Tech Support and Updates E-LTUE6U61ABE
HP Integrated Lights-Out Essentials including 1yr 24×7 Tech Support and Updates E-LTUE6U62ABE
HP Integrated Lights-Out Essentials including 3yr 24×7 Tech Support and Updates Single Svr LicenseBD774A
HP Integrated Lights-Out Essentials including 1yr 24×7 Tech Support and Updates Single Svr LicenseBD775A
NOTE: For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html NOTE: For more information, visit: http://www.hp.com/go/ilo.
Converged Infrastructure Management SoftwareHP OneView
HP OneView with iLO Advanced
HP OneView incl 3yr 24×7 Supp Phys 1 Svr LicE5Y34A
HP OneView Media Kit Phys No LicE5Y37A
HP OneView without iLO Advanced
HP OneView w/o iLO Adv incl 3yr 24×7 Supp Phys 1 Svr LicE5Y38A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14621_div/14621_div.html
(Worldwide)
High Performance ClustersHP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24×7 Flexible LicenseQL803B
HP Insight Cluster Management Utility 3yr 24×7 Flexible License
NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.		BD476A
HP Insight Cluster Management Utility MediaBD477A
NOTE: For additional license kits please see the QuickSpecs athttp://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html.

HP Security

HP Trusted Platform Module Option
۴۸۸۰۶۹-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLockerâ„¢ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® ۲۰۰۸٫ BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.
HP 1U Security Gen8 Bezel Kit۶۶۴۹۱۸-B21
HP Storage ControllersSAS Controllers
Smart Array P222 Controller
HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller۶۳۱۶۶۷-B21
Smart Array P420 Controller
HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller۶۳۱۶۷۰-B21
HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller۶۳۱۶۷۱-B21
Smart Array P421 Controller
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller۶۳۱۶۷۳-B21
HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller۶۳۱۶۷۴-B21
Optional Upgrades
HP 2GB P-series Smart Array Flash Backed Write Cache۶۳۱۶۸۱-B21
HP DL320e Gen8 Mini SAS Cable Kit۶۸۵۰۱۸-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14227_div/14227_div.html
(Smart Array P222 Controller)
http://h18000.www1.hp.com/products/quickspecs/14228_div/14228_div.html
(Smart Array P420 Controller)
http://h18000.www1.hp.com/products/quickspecs/14229_div/14229_div.html
(Smart Array P421 Controller)
Host Bus Adapter
HP H220 Host Bus Adapter۶۵۰۹۳۳-B21
HP H221 Host Bus Adapter
NOTE: This is a 2 x4 External Port HBA.		۶۵۰۹۳۱-B21
HP H222 Host Bus Adapter۶۵۰۹۲۶-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18004.www1.hp.com/products/quickspecs/14336_div/14336_div.html
(HBA 220)
http://h18004.www1.hp.com/products/quickspecs/14222_div/14222_div.html
(HBA 221)
http://h18004.www1.hp.com/products/quickspecs/14337_div/14337_div.html
(HBA 222)
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter۴۱۲۹۱۱-B21
NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
HP Tape BackupNOTE: For the complete range of tape drives, autoloaders, libraries and media see:http://www.hp.com/go/tape. For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK and www.hp.com/go/ebs.
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount KitC0L99A
HP StoreEver LTO-6 Ultrium 6650 Internal Tape DriveEH963A
HP StoreEver LTO-6 Ultrium 6650 External Tape DriveEH964A
HP StoreEver LTO-6 Ultrium 6250 Internal Tape DriveEH969A
HP StoreEver LTO-6 Ultrium 6250 External Tape DriveEH970A
HP Disk BackupNOTE: For the complete range of RDX drives and media see:http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK.
HP RDX Removable Disk Backup System
HP RDX320 USB3.0 External Disk Backup SystemB7B63A
HP RDX500 USB3.0 Internal Disk Backup SystemB7B64A
HP RDX500 USB3.0 External Disk Backup SystemB7B66A
HP RDX1000 USB3.0 Internal Disk Backup SystemB7B67A
HP RDX1000 USB3.0 External Disk Backup SystemB7B69A
NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information:http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html (Worldwide)
HP Storage OptionsFibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ764A
Converged Network Adapter
HP CN1000Q Dual Port Converged Network Adapter
BS668A
HP StoreFabric CN1100R Dual Port Converged Network AdapterQW990A

HP Uninterruptible Power Systems

HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power SystemAF469A
HP R1.5kVA G3 1U JP/TW Uninterruptible Power SystemAF470A
HP R1.5kVA G3 1U INTL Uninterruptible Power SystemAF471A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html (Worldwide)
HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power SystemAF466A
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power SystemAF467A
HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power SystemAF468A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html (Worldwide)
R5000 Uninterruptible Power System (UPS)
HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power SystemAF461A
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power SystemAF460A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html (Worldwide)
R7000 Uninterruptible Power System (UPS)
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power SystemAF462A
HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power SystemAF463A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html (Worldwide)
NOTE: For additional information on HP Uninterruptible Power Systems please go to:www.hp.com/servers/rackups.
NOTE: For additional information on sizing your HP UPS, please reference:http://www.upssizer.com
NOTE: Please see the UPS and PDU cable matrix’s on the HP Power Protection and Management page. Under Power Cords, click on the “HP Power Cord Matrix” link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Basic Power Distribution UnitsHP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution UnitH5M54A
HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution UnitH5M55A
HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution UnitH5M56A
HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution UnitH5M57A
HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution UnitH5M58A
HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution UnitH5M59A
HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution UnitH5M60A
HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution UnitH5M61A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution UnitH5M62A
HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution UnitH5M63A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution UnitH5M64A
HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution UnitH5M67A
HP 7.3kVA 230 Volt 20 Outlet INTL Basic Power Distribution UnitH5M68A
HP 7.3kVA 230 Volt 30 Outlet INTL Basic Power Distribution UnitH5M70A
HP 11kVA 230 Volt 36 Outlet INTL Basic Power Distribution UnitH5M71A
HP 11kVA 400 Volt Three Phase 30 Outlet INTL Basic Power Distribution UnitH5M72A
HP 11kVA 400 Volt Three Phase 42 Outlet INTL Basic Power Distribution UnitH5M73A
HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution UnitH5M75A
HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution UnitH3X07A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution UnitH3X08A
HP 277 Volt options for H3X07A and H3X08A
HP 800VA – 277V Input / 230V Output NA Rack Mount TransformerH3X09A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14557_div/14557_div.html (Worldwide)
NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit www.hp.com/go/rackandpower.
HP Remote Monitoring Power Distribution UnitsHP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution UnitD9N43A
HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution UnitD9N44A
HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution UnitD9N45A
HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution UnitD9N46A
HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution UnitD9N47A
HP 7.3kVA 230 Volt 24 Outlet INTL Monitored Power Distribution UnitD9N48A
HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution UnitD9N49A
HP 7.3kVA 230 Volt 36 Outlet INTL Monitored Power Distribution UnitD9N50A
HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution UnitD9N51A
HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power Distribution UnitD9N52A
HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power Distribution UnitD9N53A
HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution UnitD9N54A
HP 11kVA 400 Volt Three Phase 21 Outlet INTL Monitored Power Distribution UnitD9N55A
HP 22kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution UnitD9N56A
HP 11kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution UnitD9N57A
HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution UnitD9N58A
HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution UnitD9N59A
HP 22kVA 400 Volt Three Phase 24 Outlet INTL Monitored Power Distribution UnitD9N60A
HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution UnitD9N61A
HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution UnitD9N62A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution UnitD9N63A
HP Environmental Sensor for Remote Monitored PDUs
HP Environmental Sensor for Remote Monitored PDUsE2D53A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14669_div/14669_div.html (Worldwide)
HP Intelligent Power Distribution Units (iPDU)iPDU Core Units
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution UnitAF520A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution UnitAF522A
HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution UnitAF525A
HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution UnitAF526A
iPDU Extension Bars
HP 5xC13 Intelligent PDU Extension Bar G2 KitAF547A
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension BarAF528A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13650_div/13650_div.html (Worldwide)

HP Power Distribution Units

Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution UnitAF504A
HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution UnitAF506A
HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution UnitAF508A
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution UnitAF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution UnitAF914A
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution UnitAF915A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu.
NOTE: Please see the UPS and PDU cable matrix’s on the HP Power Protection and Management page. Under Power Cords, click on the “HP Power Cord Matrix” link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.
HP Rack SeriesHP Intelligent Series Racks
HP 636 1075mm Pallet Intelligent Series RackBW895A
HP 636 1075mm Shock Intelligent Series RackBW896A
HP 642 1075mm Pallet Intelligent Series RackBW903A
HP 642 1075mm Shock Intelligent Series RackBW904A
HP 647 1075mm Pallet Intelligent Series RackBW911A
HP 647 1075mm Shock Intelligent Series RackBW912A
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/14223_div/14223_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.
HP Rack OptionsHP Location Discovery Services
HP 36U Location Discovery KitBW945A
HP 42U Location Discovery KitBW946A
HP 47U Location Discovery KitBW947A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14429_div/14429_div.html (Worldwide)
HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)
HP TFT7600 G2 KVM Console Rackmount Keyboard US MonitorAZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard UK MonitorAZ871A
HP TFT7600 G2 KVM Console Rackmount Keyboard DE MonitorAZ872A
HP TFT7600 G2 KVM Console Rackmount Keyboard FR MonitorAZ873A
HP TFT7600 G2 KVM Console Rackmount Keyboard IT MonitorAZ874A
HP TFT7600 G2 KVM Console Rackmount Keyboard ES MonitorAZ875A
HP TFT7600 G2 KVM Console Rackmount Keyboard DK MonitorAZ876A
HP TFT7600 G2 KVM Console Rackmount Keyboard NO MonitorAZ877A
HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI MonitorAZ878A
HP TFT7600 G2 KVM Console Rackmount Keyboard CH MonitorAZ879A
HP TFT7600 G2 KVM Console Rackmount Keyboard PT MonitorAZ880A
HP TFT7600 G2 KVM Console Rackmount Keyboard BE MonitorAZ881A
HP TFT7600 G2 KVM Console Rackmount Keyboard JP MonitorAZ882A
HP TFT7600 G2 KVM Console Rackmount Keyboard RU MonitorAZ883A
HP TFT7600 G2 KVM Console Rackmount Keyboard Intl MonitorAZ884A
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA MonitorAZ885A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html (Worldwide)
HP USB Keyboard and Mouse
HP USB BFR with PVC Free US Keyboard/Mouse Kit۶۳۱۳۴۱-B21
HP USB BFR with PVC Free UK Keyboard/Mouse Kit۶۳۱۳۴۴-B21
HP USB BFR with PVC Free FR Keyboard/Mouse Kit۶۳۱۳۴۶-B21
HP USB BFR with PVC Free ES Keyboard/Mouse Kit۶۳۱۳۴۸-B21
HP USB BFR with PVC Free DE Keyboard/Mouse Kit۶۳۱۳۵۸-B21
HP USB BFR with PVC Free JP Keyboard/Mouse Kit۶۳۱۳۶۰-B21
HP USB BFR with PVC Free IT Keyboard/Mouse Kit۶۳۱۳۶۲-B21
HP USB BFR with PVC Free CN Keyboard/Mouse Kit۶۳۱۳۶۴-B21
HP USB BFR with PVC Free AE Keyboard/Mouse Kit۶۳۸۲۱۲-B21
HP USB BFR with PVC Free RU Keyboard/Mouse Kit۶۳۸۲۱۴-B21
HP USB BFR with PVC Free IN Keyboard/Mouse Kit۶۷۲۰۹۷-D63
HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit۶۷۲۰۹۷-۳۷۳
HP USB BFR with PVC Free Intl Keyboard/Mouse Kit۶۷۲۰۹۷-B33
HP USB BFR with PVC Free PT Keyboard/Mouse Kit۶۷۲۰۹۷-۱۳۳
HP USB BFR with PVC Free TR Keyboard/Mouse Kit۶۷۲۰۹۷-۱۴۳
HP USB BFR with PVC Free CZ Keyboard/Mouse Kit۶۷۲۰۹۷-۲۲۳
HP USB BFR with PVC Free FI Keyboard/Mouse Kit۶۷۲۰۹۷-۳۵۳
HP USB BFR with PVC Free SE Keyboard/Mouse Kit۶۷۲۰۹۷-۱۰۳
HP USB BFR with PVC Free CH Keyboard/Mouse Kit۶۷۲۰۹۷-۱۱۳
HP USB BFR with PVC Free KR Keyboard/Mouse Kit۶۷۲۰۹۷-KD3
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html (Worldwide)
HP Server Console Switches
HP Server Console 0x2x8 Port Analog SwitchAF616A
HP Server Console 0x2x16 Port Analog SwitchAF617A
HP TAA 0x2x16xKVM Server Console G2 SwitchAF626A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html (Worldwide)
HP Server Console Switch G2 with Virtual Media & CAC
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC SoftwareAF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC SoftwareAF619A
HP KVM CAT5 1-pack USB Interface Adapter۳۳۶۰۴۷-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html (Worldwide)
HP 1×4 USB/PS2 KVM Console Switch
HP 1×4 USB/PS2 KVM Console SwitchAF611A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC SoftwareAF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC SoftwareAF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC SoftwareAF622A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)
Rail Kits
HP 1U Cable Management Arm for Ball Bearing Gen8 Rail Kit۶۶۳۲۰۳-B21
HP 1U Small Form Factor Ball Bearing Gen8 Rail Kit۶۶۳۲۰۱-B21
HP 1U Large Form Factor Ball Bearing Gen8 Rail Kit۶۶۳۲۰۲-B21
HP USB and SD OptionsHP Flash Media Kits for USB Drives
HP 2GB USB Flash Media Drive Key Kit۶۰۸۴۴۷-B21
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
HP 4GB SD Enterprise Performance Flash Media Kit۵۸۰۳۸۷-B21
HP 4GB SD Enterprise Performance Flash Media Kit
NOTE: Blank SD media device is supported for use with VMware and Citrix. SD media must be installed in the internal slot of the ProLiant server. Learn more at:http://www.hp.com/go/proliantvirtualization.
HP Enterprise Mainstream Flash Media Kits for Memory Cards
HP 8GB SD Enterprise Mainstream Flash Media Kit۷۲۶۱۱۳-B21
HP 32GB SD Enterprise Mainstream Flash Media Kit۷۰۰۱۳۶-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13971_div/13971_div.html
HP Care Pack ServicesProactive Care
NOTE: Collaborative Support plus Proactive services delivered by the onshore, local language Advanced Solution Center (ASC), end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.
HP 3 year 4 hour 24×7 ProLiant DL320e Proactive Care ServiceU6F03E
HP 3 year 4 hour 24×7 with Defective Media Retention ProLiant DL320e Proactive Care ServiceU6F04E
HP 3 year 6 hour Call to Repair 24×7 ProLiant DL320e Proactive Care ServiceU6F09E
HP 3 year 6 hour Call to Repair 24×7 w/Defective Media Retention ProLiant DL320e Proactive Care SVCU6F10E
Collaborative Support
NOTE: Hardware break/fix plus 24×7 software diagnosis support with collaborative call management for a broad spectrum of 3rd Party software products including O/S and hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors from the software vendors directly and deploying them on HP ProLiant servers.
HP 3 year 4 hour 24×7 ProLiant DL320e Collaborative SupportU6F01E
HP 3 year 4 hour 24×7 with Defective Media Retention ProLiant DL320e Collaborative SupportU6F02E
HP 3 year 6 hour Call to Repair 24×7 ProLiant DL320e Collaborative SupportU6F07E
HP 3 year 6 hour Call to Repair 24×7 w/Defective Media Retention ProLiant DL320e Collaborative SupU6F08E
Proactive Care Personalized Support Option
NOTE: To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advices for the customer’s environment.
HP 3 year ISS ProactiveCare Personalized SupportU6W98E
Installation Services
NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business.
HP Installation ProLiant DL320e ServiceU6F51E
HP Startup ProLiant DL320e ServiceU6F53E
NOTE: For more information, customer/resellers can contact:http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Memory

HP SmartMemory

New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of additional Gen8 enhancements in performance, durability and future manageability support through HP Active Health System

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture
Intel Processor socket supports 2 channels and 2 DIMMs per channel. Total max. memory up to 32GB DDR3 PC3-12800E1600MHz.

Standard Memory Plus Optional Memory
Up to 32 GB memory is available with the optional installation of 4 x 8GB PC3-12800E UDIMM ECC DDR3 UDIMM Memory kits, operating at 1600MHz when fully populated at 2 DIMMs per Channel in 4 slots.
NOTE: The below chart does not represent all possible memory configurations.
NOTE: For best performance, it is recommended that customer installs memory in identical pairs
General Memory Population Rules and Guidelines:

  • The HP ProLiant DL320e Gen8 Server has four memory slots
  • There are two channels per server with two DIMM slot per channel
  • Memory channel A consists of the two (2) DIMMs that are closest to the processor
  • Memory channel B consists of the two (2) DIMMs that are furthest from the processor
  • Different types of processors have different types of memory support.
  • Support for single/dual-rank 1333/1600 MT/s ECC UDIMM (unbuffered DIMMS)
  • The server supports up to 32 GB (4 x 8-GB) for Unbuffered DIMMs
  • No support for LV-DIMMs; RDIMMs; Non-ECC UDIMMs
  • Do not install DIMMs if the processor is not installed
  • Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank)
  • Always use HP qualified DIMM

Farthest DIMM (either CHA or CHB) should always be populated first

The UDIMM installing sequence:
MemorySlot
DIMM1CDIMM2ADIMM3DDIMM4B
Standard
(Entry Model)		۲ GBEmpty۲ GBEmptyEmpty
Standard
(Base Model)		۴ GBEmpty۴ GBEmptyEmpty
Standard
(Performance Model)		۸ GBEmpty۴ GBEmpty۴ GB
Maximum۳۲ GB۸ GB۸ GB۸ GB۸ GB
Memory Speed by Processor Model
Processor ModelsSupported Memory Speeds
E3-1220v2, E3-1220Lv2, E3-1230v2, E3-1240v2, E3-1270v2, E3-1290v2, i3-3220T, i3-3240, G2120, G2100 T۱۶۰۰/۱۳۳۳MHz
Following are memory options available from HP:
HP MemoryNOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with the DL320e Gen8 Server.
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit۶۶۹۳۲۰-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit۶۴۷۹۰۵-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit۶۶۹۳۲۲-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit۶۴۷۹۰۷-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit۶۶۹۳۲۴-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit۶۴۷۹۰۹-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: PC3L is a low voltage memory.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Storage

۱ – ۴
۴ x 3.5″ (LFF) SAS/SATA hard drive bays
AOptical Drive Bay: Optional DVD-ROM, or DVD-RW drive
۱ – ۸۸ x 2.5″ (SFF) SAS/SATA hard drive bays
AOptical Drive Bay: Optional DVD-ROM, or DVD-RW drive
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information – Factory Integrated Models      DL320e G8 Core Options      Additional Options      DL320e G8 Memory      Storage      Technical Specifications      DL320e G8 QuickSpecsimages/line.gif (50 bytes)

Technical Specifications

System UnitDimensions (H x W x D)۸ SFF۱٫۷ x 17.11 x 27.5 inches (4.32 x 43.46 x 69.90 cm)
۴ LFF۱٫۷ x 17.11 x 29.5 inches (4.32 x 43.46 x 75.0 cm)
Weight (approximate)Maximum
(all hard drives, power supply, and processor installed)		۸ SFF/4 LFF – 16.2/16.8 kg, 35.7/37.0 lb
Minimum
(one hard drive, power supply, and processor installed)		۸ SFF/4 LFF – 10.9/11.9 kg, 24.0/26.2 lb
Input Requirements
(HP ProLiant 350 W power supply)		Rated Line Voltage۱۰۰ to 120 VAC
Rated Input Current۶ Amps (at 100VAC) to 3 Amps (at 200 VAC)
Rated Input Frequency۵۰ to 60 Hz
Power Supply Output
(per power supply)		Rated Steady-State Power۳۵۰ W (at 100 to 120 VAC),
۳۵۰ W (at 200 to 240 VAC)
Maximum Peak Power۴۰۰ W (at 100 to 120 VAC),
۴۰۰ W (at 200 to 240 VAC)
System Inlet TemperatureOperating۱۰° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating-۳۰° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)		Operating۱۰ to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating۵ to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
AltitudeOperating۳۰۴۸ m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating۹۱۴۴ m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic NoiseListed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle (Note 1)
LWAd
۵٫۰ B
LpAm
۳۵ dB Average Bystander
Operating
LWAd
۵٫۱ B
LpAm
۳۵ dB Average Bystander
NOTE: Values are subject to change without notification and are for reference only.
NOTE: Performance of system, options, and ancillary equipment will vary depending on the system configuration.
NOTE: Levels presented do not account for non-Hewlett-Packard installed hardware.
Emissions Classification (EMC)FCC Rating
Class A
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

HP Dynamic Smart Array B120i Controller

DimensionsEmbedded
Disk Drive and Enclosure Interface – Transfer rateUp to 6Gb/s SATA (Serial ATA)
Connectors۶ internal SATA connectors
Server Interfacex4 PCIe 2.0
SATA Speed۶Gb/s SATA links
Cache MemoryZero Memory RAID has no cache memory
Logical Drives SupportedUp to 8 logical volumes (6 physical drives)
Host Memory Addressing۶۴-bit, supporting greater than 4GB server memory space
Hot Plug SupportYes
RAID SupportRAID 0 (Striping), RAID 1 (Mirroring)
RAID 1+0 (Striping & Mirroring)
HP Ethernet 1Gb 2-port 330i AdapterCompatibilityIEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer MethodPCI Express, four lanes (x8)
ControllerBCM5717
Network Transfer Rate۱۰Base-T (Half-Duplex)
۱۰Base-T (Full-Duplex)
۱۰۰Base-TX (Half-Duplex)
۱۰۰Base-TX (Full-Duplex)
۱۰۰۰Base-TX (Half and Full-Duplex)
ConnectorRJ-45
Cable Support۱۰Base-T
۱۰۰Base-TX
۱۰۰۰BaseTX
Environment-friendly Products and ApproachEnd-of-life Management and RecyclingHewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:http://www.hp.com/go/green. To recycle your product, please go to:http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Sillworks          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
جدیدتر فروش تعداد محدود سرور دست دوم و کارکرده HP ML310 G8
بازگشت به لیست
قدیمی تر HP P4000 G2 LeftHand SAN Solutions

نوشته های مشابه

    دیدگاهتان را بنویسید

    نشانی ایمیل شما منتشر نخواهد شد. بخش‌های موردنیاز علامت‌گذاری شده‌اند *

    This site uses Akismet to reduce spam. Learn how your comment data is processed.
